Rubik’s Cube Example

Note

This example can be done in 5-10 minutes on a laptop or in GitHub Codespaces (See README).

The Rubik’s Cube

Scrambled Rubik's Cube Solved Rubik's Cube

We will be using DeepXube to solve the Rubik’s Cube. The Rubik’s Cube is a 3x3x3 cube consisting of six faces and 54 stickers, where each face has 9 stickers. Each face can be moved 90 degrees clockwise or counterclockwise for a total of 12 actions. There are approximately \(4.3 \times 10^{19}\) possible states (i.e. sticker permutations).

Visualizing States

cube3 is the name for the Rubik’s Cube domain. You can see the solved Rubik’s Cube using:

deepxube viz --domain cube3 --steps 0

Since states are generated by starting from the solved cube and taking actions, increasing the number of steps will increase the number of times the cube is scrambled:

deepxube viz --domain cube3 --steps 100

This command will produce an image of the cube. You can click and drag it to rotate it. You can also interact with the terminal to take actions.

Tip

If you are doing this exercise using a remote machine and cannot see the rendered image, then you can save the image as a .png using the --o <file> argument.

deepxube viz --domain cube3 --steps 100 --o img.png

Generating Problem Instances

The maximum number actions required to solve the Rubik’s cube with 90 degree face turns is 26 [Rok14]. With 12 actions for each state, in the worst case, a brute force search would require generating \(12^{26}\)(\(\approx 1.1 \times 10^{28}\)) states. Therefore, we will create “easy” problem instances for brute-force search and “hard” problem instances for deep reinforcement learning and batch-weighted A* search.

mkdir tutorial

mkdir tutorial/cube3/

deepxube problem_inst --domain cube3 --step_min 2 --step_max 3 --num 10 --file tutorial/cube3/easy.pkl --redo

deepxube problem_inst --domain cube3 --step_min 1000 --step_max 10000 --num 10 --file tutorial/cube3/hard.pkl --redo

Visualizing Generated Problem Instances

To visualize and interact with the generated problem instances, use:

deepxube viz --domain cube3 --file tutorial/cube3/easy.pkl --idx 5

--idx is the index of the problem instance in the file.

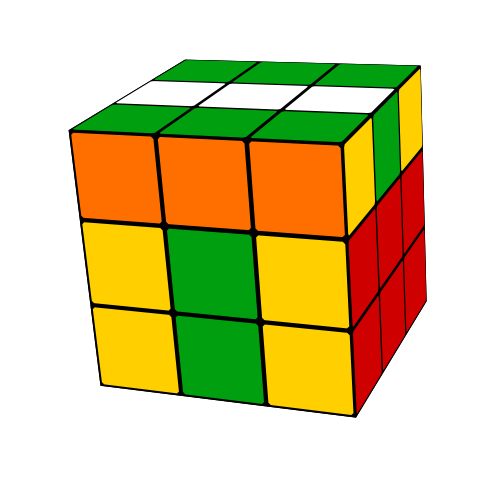

Scrambled Rubik's Cube viz

Note

Your visualizations may look different since problem instances are randomly generated.

Training a Heuristic Function

We will train a heuristic function represented as a deep neural network (DNN). Specifically, the DNN is a deep residual neural network [HZRS16] with two residual blocks, two layers of width 200 per block, and batch normalization [IS15]. Building on approximate value iteration [Bel57, BT96], the DNN will be trained with limited-horizon Bellman-based learning (LHBL) [HAS26].

deepxube train --domain cube3 --heur resnet_fc.200H_2B_bn --heur_type V --pathfind graph_v --step_max 100 --up_itrs 100 --search_itrs 50 --backup -1 --procs 2 --batch_size 200 --max_itrs 5000 --dir tutorial/cube3/models/

--step_max 100 uses 100 steps to generate problem instances. In the Rubik’s Cube domain, this starts from the goal and takes between 0 and 100 actions to generate a problem instance.

--up_itrs 100 updates the target network every 100 iterations.

--search_itrs 50 performs search for 50 iterations on each generated problem instances. All states expanded during search are added to the training set.

--backup -1 uses the LHBL training update by backing up the entire search tree.

--procs 2 uses two parallel processes to generate training data.

Important

The product of the number of update steps and batch size should be divisible by the number of search iterations.

Important

Currently, DeepXube expects the given pathfinding algorithm expand exactly one state each iteration. Therefore, batched versions of search cannot currently be used during training.

Training should result in a heuristic function that goes from solving about 3% to about 11% of problem instances during training.

device: cpu, devices: [], on_gpu: False
ResnetFCHeur(
  (one_hots): ModuleList(
    (0): OneHot()
  )
  (heur): Sequential(
    (0): Linear(in_features=324, out_features=200, bias=True)
    (1): ResnetModel(
      (blocks): ModuleList(
        (0-1): 2 x ModuleList(
          (0): FullyConnectedModel(
            (layers): ModuleList(
              (0): ModuleList(
                (0): Linear(in_features=200, out_features=200, bias=True)
                (1): BatchNorm1d(200, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
                (2): ReLU()
              )
              (1): ModuleList(
                (0): Linear(in_features=200, out_features=200, bias=True)
                (1): BatchNorm1d(200, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
                (2): LinearAct()
              )
            )
          )
        )
      )
      (act_fns): ModuleList(
        (0-1): 2 x ReLU()
      )
    )
    (2): Linear(in_features=200, out_features=1, bias=True)
  )
)
Number of trainable parameters: 227,601
Initializing data buffer with max size 20,000
Input array sizes:
index: 0, dtype: uint8, shape: (54,)
index: 1, dtype: float64, shape: ()
Data buffer initialized. Time: 0.0001747608184814453
UpdateHeurVRLKeepGoal(UpArgs(procs=2, up_itrs=100, step_max=100, search_itrs=50, ub_heur_solns=False, backup=-1, policy_rand_prob=0.0, up_gen_itrs=None, up_batch_size=100, nnet_batch_size=20000, sync_main=False, v=False))
GraphSearchHeurNodeActsEnum(batch_size=1, weight=1.0, eps=0.0)
TrainArgs(batch_size=200, max_itrs=5000, balance_steps=False, rb=0, loss_thresh=inf, targ_up_searches=0, skip_heur=False, skip_policy=False, checkpoint=0, grad_accum=1, display=100)
Cube3()

Getting Data - itr: 0, update_num: 0, targ_update: 0, num_gen: 20,000
Times - steps_gen: 0.03, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.42, ->get_states: 0.04, ->pathfinding: 3.86, Tot: 4.43
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.04, Tot: 0.04
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.61, nodes: 0.76, up_inst: 0.06, heur: 2.09, filt: 0.18, cost: 0.04, pushpop: 0.07, edges_next: 0.01, set_next: 0.00, Tot: 3.86
Data - %solved: 2.27, path_costs: 0.333, search_itrs: 3.205, cost-to-go (mean/min/max): 1.01/0.00/2.00
Itr: 0, loss: 2.41E+00, targ_ctg: 1.02, nnet_ctg: -0.45, Time: 2.83
Train - itrs: 100, loss: 4.17E-02, targ_updated: True
Times - up_start: 0.01, up_data: 2.49, up_end: 0.32, data_samp: 0.00, train: 0.40, save_net: 0.00, save_status: 0.00, Tot: 3.23

Getting Data - itr: 100, update_num: 1, targ_update: 1, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.49, ->get_states: 0.05, ->pathfinding: 4.66, Tot: 5.29
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.03, goal: 0.00, expand: 0.76, nodes: 0.55, up_inst: 0.17, heur: 2.68, filt: 0.19, cost: 0.05, pushpop: 0.22, edges_next: 0.01, set_next: 0.00, Tot: 4.66
Data - %solved: 4.08, path_costs: 1.153, search_itrs: 5.600, cost-to-go (mean/min/max): 1.75/0.00/3.00
Itr: 100, loss: 7.00E-01, targ_ctg: 1.76, nnet_ctg: 0.95, Time: 2.86
Train - itrs: 100, loss: 3.39E-02, targ_updated: True
Times - up_start: 0.00, up_data: 2.56, up_end: 0.29, data_samp: 0.00, train: 0.40, save_net: 0.00, save_status: 0.00, Tot: 3.27

Getting Data - itr: 200, update_num: 2, targ_update: 2, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.48, ->get_states: 0.05, ->pathfinding: 4.68, Tot: 5.29
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.86, nodes: 0.62, up_inst: 0.07, heur: 2.70, filt: 0.17, cost: 0.05, pushpop: 0.16, edges_next: 0.01, set_next: 0.00, Tot: 4.68
Data - %solved: 4.95, path_costs: 1.943, search_itrs: 7.294, cost-to-go (mean/min/max): 2.55/0.00/3.76
Itr: 200, loss: 7.37E-01, targ_ctg: 2.57, nnet_ctg: 1.73, Time: 2.85
Train - itrs: 100, loss: 4.36E-02, targ_updated: True
Times - up_start: 0.00, up_data: 2.55, up_end: 0.29, data_samp: 0.00, train: 0.41, save_net: 0.00, save_status: 0.00, Tot: 3.26

Getting Data - itr: 300, update_num: 3, targ_update: 3, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.47, ->get_states: 0.06, ->pathfinding: 4.34, Tot: 4.94
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.58, nodes: 0.89, up_inst: 0.07, heur: 2.47, filt: 0.15, cost: 0.04, pushpop: 0.09, edges_next: 0.01, set_next: 0.00, Tot: 4.34
Data - %solved: 6.27, path_costs: 1.941, search_itrs: 5.018, cost-to-go (mean/min/max): 3.32/0.00/4.63
Itr: 300, loss: 7.31E-01, targ_ctg: 3.34, nnet_ctg: 2.52, Time: 2.67
Train - itrs: 100, loss: 4.14E-02, targ_updated: True
Times - up_start: 0.00, up_data: 2.37, up_end: 0.28, data_samp: 0.00, train: 0.39, save_net: 0.00, save_status: 0.00, Tot: 3.06

Getting Data - itr: 400, update_num: 4, targ_update: 4, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, update_perf: 0.00, backup: 0.08, get_tr_data: 0.00, to_np: 0.02, put: 0.02, gc: 0.81, ->get_states: 0.07, ->pathfinding: 7.20, Tot: 8.21
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.07, Tot: 0.07
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.06, goal: 0.00, expand: 1.77, nodes: 1.02, up_inst: 0.12, heur: 3.62, filt: 0.30, cost: 0.08, pushpop: 0.18, edges_next: 0.02, set_next: 0.01, Tot: 7.20
Data - %solved: 7.71, path_costs: 2.706, search_itrs: 8.527, cost-to-go (mean/min/max): 4.10/0.00/5.50
Itr: 400, loss: 7.11E-01, targ_ctg: 4.10, nnet_ctg: 3.29, Time: 4.41
Train - itrs: 100, loss: 2.90E-02, targ_updated: True
Times - up_start: 0.00, up_data: 4.00, up_end: 0.40, data_samp: 0.00, train: 0.53, save_net: 0.00, save_status: 0.00, Tot: 4.93

Getting Data - itr: 500, update_num: 5, targ_update: 5, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.51, ->get_states: 0.06, ->pathfinding: 4.62, Tot: 5.27
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.94, nodes: 0.57, up_inst: 0.07, heur: 2.70, filt: 0.16, cost: 0.05, pushpop: 0.09, edges_next: 0.01, set_next: 0.00, Tot: 4.62
Data - %solved: 7.17, path_costs: 2.463, search_itrs: 4.995, cost-to-go (mean/min/max): 4.86/0.00/6.27
Itr: 500, loss: 7.58E-01, targ_ctg: 4.85, nnet_ctg: 4.05, Time: 2.84
Train - itrs: 100, loss: 5.46E-02, targ_updated: True
Times - up_start: 0.00, up_data: 2.54, up_end: 0.29, data_samp: 0.00, train: 0.40, save_net: 0.00, save_status: 0.00, Tot: 3.25

Getting Data - itr: 600, update_num: 6, targ_update: 6, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, update_perf: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, put: 0.01, gc: 0.48, ->get_states: 0.05, ->pathfinding: 4.44, Tot: 5.06
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.55, nodes: 0.94, up_inst: 0.07, heur: 2.54, filt: 0.16, cost: 0.04, pushpop: 0.09, edges_next: 0.01, set_next: 0.00, Tot: 4.44
Data - %solved: 8.75, path_costs: 3.372, search_itrs: 8.166, cost-to-go (mean/min/max): 5.66/0.00/7.22
Itr: 600, loss: 7.73E-01, targ_ctg: 5.66, nnet_ctg: 4.84, Time: 2.75
Train - itrs: 100, loss: 5.38E-02, targ_updated: True
Times - up_start: 0.00, up_data: 2.43, up_end: 0.31, data_samp: 0.00, train: 0.40, save_net: 0.00, save_status: 0.00, Tot: 3.15

Getting Data - itr: 700, update_num: 7, targ_update: 7, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.46, ->get_states: 0.05, ->pathfinding: 4.40, Tot: 5.00
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.54, nodes: 0.93, up_inst: 0.07, heur: 2.52, filt: 0.15, cost: 0.04, pushpop: 0.09, edges_next: 0.01, set_next: 0.00, Tot: 4.40
Data - %solved: 10.05, path_costs: 3.734, search_itrs: 10.651, cost-to-go (mean/min/max): 6.15/0.00/7.95
Itr: 700, loss: 5.24E-01, targ_ctg: 6.11, nnet_ctg: 5.51, Time: 2.71
Train - itrs: 100, loss: 8.92E-02, targ_updated: True
Times - up_start: 0.00, up_data: 2.41, up_end: 0.30, data_samp: 0.00, train: 0.40, save_net: 0.00, save_status: 0.00, Tot: 3.11

Getting Data - itr: 800, update_num: 8, targ_update: 8, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, update_perf: 0.00, backup: 0.05, get_tr_data: 0.00, to_np: 0.01, put: 0.01, gc: 0.50, ->get_states: 0.05, ->pathfinding: 4.43, Tot: 5.06
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.66, nodes: 0.59, up_inst: 0.24, heur: 2.48, filt: 0.16, cost: 0.04, pushpop: 0.21, edges_next: 0.01, set_next: 0.00, Tot: 4.43
Data - %solved: 9.70, path_costs: 4.228, search_itrs: 11.465, cost-to-go (mean/min/max): 6.90/0.00/8.78
Itr: 800, loss: 6.51E-01, targ_ctg: 6.80, nnet_ctg: 6.10, Time: 2.79
Train - itrs: 100, loss: 1.02E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.42, up_end: 0.36, data_samp: 0.00, train: 0.42, save_net: 0.00, save_status: 0.00, Tot: 3.20

Getting Data - itr: 900, update_num: 9, targ_update: 9, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.49, ->get_states: 0.05, ->pathfinding: 4.36, Tot: 4.99
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.77, nodes: 0.71, up_inst: 0.07, heur: 2.48, filt: 0.16, cost: 0.04, pushpop: 0.09, edges_next: 0.01, set_next: 0.00, Tot: 4.36
Data - %solved: 10.07, path_costs: 4.262, search_itrs: 11.062, cost-to-go (mean/min/max): 7.34/0.00/9.64
Itr: 900, loss: 6.09E-01, targ_ctg: 7.57, nnet_ctg: 6.85, Time: 2.70
Train - itrs: 100, loss: 1.20E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.40, up_end: 0.30, data_samp: 0.00, train: 0.37, save_net: 0.00, save_status: 0.00, Tot: 3.07

Getting Data - itr: 1000, update_num: 10, targ_update: 10, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, update_perf: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, put: 0.01, gc: 0.48, ->get_states: 0.05, ->pathfinding: 4.48, Tot: 5.09
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.63, nodes: 0.58, up_inst: 0.29, heur: 2.54, filt: 0.16, cost: 0.04, pushpop: 0.18, edges_next: 0.01, set_next: 0.00, Tot: 4.48
Data - %solved: 10.11, path_costs: 4.308, search_itrs: 10.413, cost-to-go (mean/min/max): 7.92/0.00/10.33
Itr: 1000, loss: 3.13E-01, targ_ctg: 7.84, nnet_ctg: 7.42, Time: 2.76
Train - itrs: 100, loss: 9.52E-02, targ_updated: True
Times - up_start: 0.00, up_data: 2.45, up_end: 0.30, data_samp: 0.00, train: 0.38, save_net: 0.00, save_status: 0.00, Tot: 3.13

Getting Data - itr: 1100, update_num: 11, targ_update: 11, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.50, ->get_states: 0.06, ->pathfinding: 4.46, Tot: 5.10
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.60, nodes: 0.64, up_inst: 0.22, heur: 2.57, filt: 0.16, cost: 0.04, pushpop: 0.18, edges_next: 0.01, set_next: 0.00, Tot: 4.46
Data - %solved: 11.45, path_costs: 3.990, search_itrs: 7.578, cost-to-go (mean/min/max): 8.44/0.00/11.16
Itr: 1100, loss: 3.71E-01, targ_ctg: 8.37, nnet_ctg: 7.97, Time: 2.76
Train - itrs: 100, loss: 1.97E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.45, up_end: 0.31, data_samp: 0.00, train: 0.40, save_net: 0.00, save_status: 0.00, Tot: 3.16

Getting Data - itr: 1200, update_num: 12, targ_update: 12, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.48, ->get_states: 0.05, ->pathfinding: 4.44, Tot: 5.06
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.70, nodes: 0.70, up_inst: 0.07, heur: 2.54, filt: 0.16, cost: 0.04, pushpop: 0.18, edges_next: 0.01, set_next: 0.00, Tot: 4.44
Data - %solved: 11.31, path_costs: 4.644, search_itrs: 11.337, cost-to-go (mean/min/max): 8.80/0.00/11.67
Itr: 1200, loss: 2.48E-01, targ_ctg: 8.72, nnet_ctg: 8.33, Time: 2.73
Train - itrs: 100, loss: 1.50E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.43, up_end: 0.30, data_samp: 0.00, train: 0.38, save_net: 0.00, save_status: 0.00, Tot: 3.12

Getting Data - itr: 1300, update_num: 13, targ_update: 13, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.52, ->get_states: 0.06, ->pathfinding: 4.51, Tot: 5.18
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.69, nodes: 0.71, up_inst: 0.11, heur: 2.54, filt: 0.17, cost: 0.05, pushpop: 0.20, edges_next: 0.01, set_next: 0.00, Tot: 4.51
Data - %solved: 11.62, path_costs: 4.790, search_itrs: 12.576, cost-to-go (mean/min/max): 8.65/0.00/12.39
Itr: 1300, loss: 3.75E-01, targ_ctg: 8.56, nnet_ctg: 8.47, Time: 2.79
Train - itrs: 100, loss: 2.45E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.49, up_end: 0.30, data_samp: 0.00, train: 0.38, save_net: 0.00, save_status: 0.00, Tot: 3.18

Getting Data - itr: 1400, update_num: 14, targ_update: 14, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, update_perf: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, put: 0.01, gc: 0.47, ->get_states: 0.05, ->pathfinding: 4.32, Tot: 4.92
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.51, nodes: 0.65, up_inst: 0.17, heur: 2.47, filt: 0.15, cost: 0.04, pushpop: 0.27, edges_next: 0.01, set_next: 0.00, Tot: 4.32
Data - %solved: 9.96, path_costs: 4.094, search_itrs: 8.996, cost-to-go (mean/min/max): 9.23/0.00/12.70
Itr: 1400, loss: 7.30E-01, targ_ctg: 9.36, nnet_ctg: 8.78, Time: 2.66
Train - itrs: 100, loss: 2.57E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.37, up_end: 0.29, data_samp: 0.00, train: 0.40, save_net: 0.00, save_status: 0.00, Tot: 3.06

Getting Data - itr: 1500, update_num: 15, targ_update: 15, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.48, ->get_states: 0.05, ->pathfinding: 4.37, Tot: 4.98
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.49, nodes: 0.84, up_inst: 0.16, heur: 2.50, filt: 0.15, cost: 0.04, pushpop: 0.14, edges_next: 0.01, set_next: 0.00, Tot: 4.37
Data - %solved: 11.09, path_costs: 4.450, search_itrs: 12.295, cost-to-go (mean/min/max): 9.41/0.00/12.91
Itr: 1500, loss: 2.62E-01, targ_ctg: 9.45, nnet_ctg: 9.08, Time: 2.69
Train - itrs: 100, loss: 2.36E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.39, up_end: 0.29, data_samp: 0.00, train: 0.40, save_net: 0.00, save_status: 0.00, Tot: 3.09

Getting Data - itr: 1600, update_num: 16, targ_update: 16, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.07, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.02, gc: 0.62, ->get_states: 0.05, ->pathfinding: 4.37, Tot: 5.15
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.59, nodes: 0.85, up_inst: 0.11, heur: 2.49, filt: 0.16, cost: 0.04, pushpop: 0.09, edges_next: 0.01, set_next: 0.00, Tot: 4.37
Data - %solved: 9.81, path_costs: 4.446, search_itrs: 8.652, cost-to-go (mean/min/max): 9.72/0.00/13.52
Itr: 1600, loss: 5.07E-01, targ_ctg: 9.61, nnet_ctg: 9.17, Time: 2.81
Train - itrs: 100, loss: 2.11E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.42, up_end: 0.38, data_samp: 0.00, train: 0.42, save_net: 0.00, save_status: 0.00, Tot: 3.23

Getting Data - itr: 1700, update_num: 17, targ_update: 17, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, update_perf: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, put: 0.01, gc: 0.49, ->get_states: 0.06, ->pathfinding: 4.44, Tot: 5.08
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.68, nodes: 0.56, up_inst: 0.11, heur: 2.54, filt: 0.16, cost: 0.04, pushpop: 0.30, edges_next: 0.01, set_next: 0.00, Tot: 4.44
Data - %solved: 11.08, path_costs: 4.313, search_itrs: 8.020, cost-to-go (mean/min/max): 9.81/0.00/13.81
Itr: 1700, loss: 2.83E-01, targ_ctg: 9.96, nnet_ctg: 9.71, Time: 2.75
Train - itrs: 100, loss: 2.98E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.44, up_end: 0.30, data_samp: 0.00, train: 0.39, save_net: 0.00, save_status: 0.00, Tot: 3.14

Getting Data - itr: 1800, update_num: 18, targ_update: 18, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.49, ->get_states: 0.06, ->pathfinding: 4.52, Tot: 5.16
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.52, nodes: 0.59, up_inst: 0.25, heur: 2.55, filt: 0.16, cost: 0.04, pushpop: 0.36, edges_next: 0.01, set_next: 0.00, Tot: 4.52
Data - %solved: 8.96, path_costs: 4.275, search_itrs: 10.141, cost-to-go (mean/min/max): 10.39/0.00/14.61
Itr: 1800, loss: 3.16E-01, targ_ctg: 10.07, nnet_ctg: 9.72, Time: 2.78
Train - itrs: 100, loss: 2.78E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.48, up_end: 0.29, data_samp: 0.00, train: 0.36, save_net: 0.00, save_status: 0.00, Tot: 3.15

Getting Data - itr: 1900, update_num: 19, targ_update: 19, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, update_perf: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, put: 0.01, gc: 0.49, ->get_states: 0.05, ->pathfinding: 4.44, Tot: 5.06
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.58, nodes: 0.67, up_inst: 0.21, heur: 2.53, filt: 0.15, cost: 0.04, pushpop: 0.21, edges_next: 0.01, set_next: 0.00, Tot: 4.44
Data - %solved: 11.38, path_costs: 5.285, search_itrs: 14.105, cost-to-go (mean/min/max): 10.11/0.00/14.52
Itr: 1900, loss: 3.13E-01, targ_ctg: 10.02, nnet_ctg: 10.02, Time: 2.76
Train - itrs: 100, loss: 2.81E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.43, up_end: 0.32, data_samp: 0.00, train: 0.40, save_net: 0.00, save_status: 0.00, Tot: 3.16

Getting Data - itr: 2000, update_num: 20, targ_update: 20, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, update_perf: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, put: 0.01, gc: 0.51, ->get_states: 0.07, ->pathfinding: 5.67, Tot: 6.33
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.07, Tot: 0.07
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.03, goal: 0.00, expand: 0.57, nodes: 0.87, up_inst: 0.25, heur: 3.31, filt: 0.22, cost: 0.06, pushpop: 0.32, edges_next: 0.02, set_next: 0.00, Tot: 5.67
Data - %solved: 11.39, path_costs: 4.501, search_itrs: 9.186, cost-to-go (mean/min/max): 10.37/0.00/14.68
Itr: 2000, loss: 3.57E-01, targ_ctg: 10.53, nnet_ctg: 10.11, Time: 3.41
Train - itrs: 100, loss: 2.70E-01, targ_updated: True
Times - up_start: 0.00, up_data: 3.08, up_end: 0.32, data_samp: 0.01, train: 0.65, save_net: 0.00, save_status: 0.00, Tot: 4.06

Getting Data - itr: 2100, update_num: 21, targ_update: 21, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.47, ->get_states: 0.06, ->pathfinding: 4.86, Tot: 5.47
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.64, nodes: 0.95, up_inst: 0.19, heur: 2.69, filt: 0.16, cost: 0.04, pushpop: 0.14, edges_next: 0.01, set_next: 0.00, Tot: 4.86
Data - %solved: 10.15, path_costs: 4.838, search_itrs: 10.990, cost-to-go (mean/min/max): 10.88/0.00/14.96
Itr: 2100, loss: 3.91E-01, targ_ctg: 10.81, nnet_ctg: 10.37, Time: 2.98
Train - itrs: 100, loss: 3.05E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.64, up_end: 0.33, data_samp: 0.00, train: 0.57, save_net: 0.00, save_status: 0.00, Tot: 3.55

Getting Data - itr: 2200, update_num: 22, targ_update: 22, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.48, ->get_states: 0.06, ->pathfinding: 4.46, Tot: 5.08
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.59, nodes: 0.75, up_inst: 0.20, heur: 2.59, filt: 0.15, cost: 0.04, pushpop: 0.09, edges_next: 0.01, set_next: 0.00, Tot: 4.46
Data - %solved: 9.92, path_costs: 4.426, search_itrs: 7.583, cost-to-go (mean/min/max): 11.43/0.00/15.33
Itr: 2200, loss: 4.82E-01, targ_ctg: 11.52, nnet_ctg: 11.05, Time: 2.74
Train - itrs: 100, loss: 2.68E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.44, up_end: 0.29, data_samp: 0.00, train: 0.39, save_net: 0.00, save_status: 0.00, Tot: 3.13

Getting Data - itr: 2300, update_num: 23, targ_update: 23, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.49, ->get_states: 0.05, ->pathfinding: 4.33, Tot: 4.95
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.73, nodes: 0.75, up_inst: 0.06, heur: 2.45, filt: 0.16, cost: 0.04, pushpop: 0.09, edges_next: 0.01, set_next: 0.00, Tot: 4.33
Data - %solved: 10.04, path_costs: 4.407, search_itrs: 11.524, cost-to-go (mean/min/max): 12.14/0.00/15.71
Itr: 2300, loss: 5.91E-01, targ_ctg: 12.08, nnet_ctg: 11.68, Time: 2.68
Train - itrs: 100, loss: 3.09E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.38, up_end: 0.30, data_samp: 0.00, train: 0.41, save_net: 0.00, save_status: 0.00, Tot: 3.09

Getting Data - itr: 2400, update_num: 24, targ_update: 24, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.48, ->get_states: 0.05, ->pathfinding: 4.33, Tot: 4.95
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.72, nodes: 0.75, up_inst: 0.06, heur: 2.47, filt: 0.15, cost: 0.04, pushpop: 0.09, edges_next: 0.01, set_next: 0.00, Tot: 4.33
Data - %solved: 10.51, path_costs: 4.779, search_itrs: 11.838, cost-to-go (mean/min/max): 12.36/0.00/16.21
Itr: 2400, loss: 5.31E-01, targ_ctg: 12.48, nnet_ctg: 11.98, Time: 2.68
Train - itrs: 100, loss: 1.10E+00, targ_updated: True
Times - up_start: 0.00, up_data: 2.38, up_end: 0.29, data_samp: 0.00, train: 0.36, save_net: 0.00, save_status: 0.00, Tot: 3.04

Getting Data - itr: 2500, update_num: 25, targ_update: 25, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.51, ->get_states: 0.05, ->pathfinding: 4.25, Tot: 4.89
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.73, nodes: 0.58, up_inst: 0.15, heur: 2.41, filt: 0.15, cost: 0.04, pushpop: 0.14, edges_next: 0.01, set_next: 0.00, Tot: 4.25
Data - %solved: 10.87, path_costs: 4.815, search_itrs: 11.145, cost-to-go (mean/min/max): 12.03/0.00/16.12
Itr: 2500, loss: 4.74E-01, targ_ctg: 12.21, nnet_ctg: 12.25, Time: 2.65
Train - itrs: 100, loss: 6.96E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.33, up_end: 0.31, data_samp: 0.00, train: 0.39, save_net: 0.00, save_status: 0.00, Tot: 3.04

Getting Data - itr: 2600, update_num: 26, targ_update: 26, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.47, ->get_states: 0.06, ->pathfinding: 4.31, Tot: 4.92
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.43, nodes: 0.87, up_inst: 0.07, heur: 2.46, filt: 0.15, cost: 0.04, pushpop: 0.25, edges_next: 0.01, set_next: 0.00, Tot: 4.31
Data - %solved: 10.99, path_costs: 4.406, search_itrs: 9.487, cost-to-go (mean/min/max): 12.59/0.00/16.68
Itr: 2600, loss: 7.08E-01, targ_ctg: 12.19, nnet_ctg: 11.85, Time: 2.66
Train - itrs: 100, loss: 4.40E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.36, up_end: 0.30, data_samp: 0.00, train: 0.43, save_net: 0.00, save_status: 0.00, Tot: 3.10

Getting Data - itr: 2700, update_num: 27, targ_update: 27, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.50, ->get_states: 0.06, ->pathfinding: 4.35, Tot: 4.99
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.71, nodes: 0.56, up_inst: 0.16, heur: 2.48, filt: 0.15, cost: 0.04, pushpop: 0.20, edges_next: 0.01, set_next: 0.00, Tot: 4.35
Data - %solved: 9.12, path_costs: 4.813, search_itrs: 12.431, cost-to-go (mean/min/max): 12.52/0.00/17.14
Itr: 2700, loss: 5.37E-01, targ_ctg: 12.39, nnet_ctg: 12.02, Time: 2.69
Train - itrs: 100, loss: 4.43E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.40, up_end: 0.29, data_samp: 0.00, train: 0.38, save_net: 0.00, save_status: 0.00, Tot: 3.08

Getting Data - itr: 2800, update_num: 28, targ_update: 28, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.48, ->get_states: 0.05, ->pathfinding: 4.28, Tot: 4.90
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.49, nodes: 0.78, up_inst: 0.07, heur: 2.43, filt: 0.15, cost: 0.04, pushpop: 0.27, edges_next: 0.01, set_next: 0.00, Tot: 4.28
Data - %solved: 11.36, path_costs: 4.442, search_itrs: 9.723, cost-to-go (mean/min/max): 13.43/0.00/17.51
Itr: 2800, loss: 1.05E+00, targ_ctg: 13.82, nnet_ctg: 13.16, Time: 2.65
Train - itrs: 100, loss: 3.42E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.35, up_end: 0.29, data_samp: 0.00, train: 0.37, save_net: 0.00, save_status: 0.00, Tot: 3.02

Getting Data - itr: 2900, update_num: 29, targ_update: 29, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.49, ->get_states: 0.05, ->pathfinding: 4.26, Tot: 4.89
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.53, nodes: 0.44, up_inst: 0.26, heur: 2.42, filt: 0.15, cost: 0.04, pushpop: 0.37, edges_next: 0.01, set_next: 0.00, Tot: 4.26
Data - %solved: 12.59, path_costs: 5.817, search_itrs: 10.471, cost-to-go (mean/min/max): 13.23/0.00/17.69
Itr: 2900, loss: 8.48E-01, targ_ctg: 13.15, nnet_ctg: 13.17, Time: 2.64
Train - itrs: 100, loss: 5.74E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.35, up_end: 0.29, data_samp: 0.00, train: 0.38, save_net: 0.00, save_status: 0.00, Tot: 3.03

Getting Data - itr: 3000, update_num: 30, targ_update: 30, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.48, ->get_states: 0.05, ->pathfinding: 4.27, Tot: 4.88
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.43, nodes: 0.91, up_inst: 0.07, heur: 2.42, filt: 0.15, cost: 0.04, pushpop: 0.21, edges_next: 0.01, set_next: 0.00, Tot: 4.27
Data - %solved: 11.14, path_costs: 4.722, search_itrs: 9.746, cost-to-go (mean/min/max): 13.02/0.00/18.19
Itr: 3000, loss: 4.70E-01, targ_ctg: 13.08, nnet_ctg: 12.93, Time: 2.64
Train - itrs: 100, loss: 6.55E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.34, up_end: 0.29, data_samp: 0.00, train: 0.37, save_net: 0.00, save_status: 0.00, Tot: 3.01

Getting Data - itr: 3100, update_num: 31, targ_update: 31, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.51, ->get_states: 0.06, ->pathfinding: 4.41, Tot: 5.06
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.56, nodes: 0.69, up_inst: 0.07, heur: 2.48, filt: 0.15, cost: 0.04, pushpop: 0.37, edges_next: 0.01, set_next: 0.00, Tot: 4.41
Data - %solved: 12.59, path_costs: 5.215, search_itrs: 9.839, cost-to-go (mean/min/max): 13.54/0.00/18.43
Itr: 3100, loss: 5.48E-01, targ_ctg: 13.62, nnet_ctg: 13.30, Time: 2.76
Train - itrs: 100, loss: 7.00E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.43, up_end: 0.32, data_samp: 0.00, train: 0.45, save_net: 0.00, save_status: 0.00, Tot: 3.20

Getting Data - itr: 3200, update_num: 32, targ_update: 32, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.51, ->get_states: 0.06, ->pathfinding: 4.84, Tot: 5.50
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.72, nodes: 0.55, up_inst: 0.07, heur: 2.80, filt: 0.16, cost: 0.05, pushpop: 0.44, edges_next: 0.01, set_next: 0.00, Tot: 4.84
Data - %solved: 11.17, path_costs: 4.964, search_itrs: 10.019, cost-to-go (mean/min/max): 13.75/0.00/19.39
Itr: 3200, loss: 8.86E-01, targ_ctg: 13.55, nnet_ctg: 12.86, Time: 2.98
Train - itrs: 100, loss: 8.15E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.64, up_end: 0.33, data_samp: 0.00, train: 0.39, save_net: 0.00, save_status: 0.00, Tot: 3.37

Getting Data - itr: 3300, update_num: 33, targ_update: 33, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.07, get_tr_data: 0.00, to_np: 0.02, update_perf: 0.00, put: 0.01, gc: 0.72, ->get_states: 0.09, ->pathfinding: 5.37, Tot: 6.30
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.09, Tot: 0.09
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.03, goal: 0.00, expand: 0.47, nodes: 1.37, up_inst: 0.22, heur: 2.82, filt: 0.18, cost: 0.05, pushpop: 0.21, edges_next: 0.01, set_next: 0.00, Tot: 5.37
Data - %solved: 9.48, path_costs: 4.728, search_itrs: 7.000, cost-to-go (mean/min/max): 13.73/0.00/19.33
Itr: 3300, loss: 6.90E-01, targ_ctg: 13.76, nnet_ctg: 13.96, Time: 3.48
Train - itrs: 100, loss: 6.03E-01, targ_updated: True
Times - up_start: 0.00, up_data: 3.06, up_end: 0.40, data_samp: 0.01, train: 0.72, save_net: 0.00, save_status: 0.00, Tot: 4.19

Getting Data - itr: 3400, update_num: 34, targ_update: 34, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, update_perf: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, put: 0.01, gc: 0.49, ->get_states: 0.06, ->pathfinding: 4.54, Tot: 5.16
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.62, nodes: 0.70, up_inst: 0.11, heur: 2.67, filt: 0.15, cost: 0.04, pushpop: 0.19, edges_next: 0.01, set_next: 0.00, Tot: 4.54
Data - %solved: 11.73, path_costs: 4.951, search_itrs: 8.498, cost-to-go (mean/min/max): 13.85/0.00/19.78
Itr: 3400, loss: 8.18E-01, targ_ctg: 14.68, nnet_ctg: 14.57, Time: 2.78
Train - itrs: 100, loss: 8.59E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.48, up_end: 0.30, data_samp: 0.00, train: 0.36, save_net: 0.00, save_status: 0.00, Tot: 3.15

Getting Data - itr: 3500, update_num: 35, targ_update: 35, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.48, ->get_states: 0.06, ->pathfinding: 4.33, Tot: 4.95
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.50, nodes: 0.79, up_inst: 0.13, heur: 2.44, filt: 0.15, cost: 0.04, pushpop: 0.23, edges_next: 0.01, set_next: 0.00, Tot: 4.33
Data - %solved: 11.04, path_costs: 4.468, search_itrs: 7.579, cost-to-go (mean/min/max): 14.15/0.00/20.02
Itr: 3500, loss: 7.62E-01, targ_ctg: 13.94, nnet_ctg: 14.15, Time: 2.69
Train - itrs: 100, loss: 8.30E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.38, up_end: 0.30, data_samp: 0.00, train: 0.40, save_net: 0.00, save_status: 0.00, Tot: 3.09

Getting Data - itr: 3600, update_num: 36, targ_update: 36, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, update_perf: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, put: 0.01, gc: 0.48, ->get_states: 0.05, ->pathfinding: 4.28, Tot: 4.90
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.53, nodes: 0.74, up_inst: 0.07, heur: 2.45, filt: 0.15, cost: 0.04, pushpop: 0.27, edges_next: 0.01, set_next: 0.00, Tot: 4.28
Data - %solved: 12.87, path_costs: 6.022, search_itrs: 11.050, cost-to-go (mean/min/max): 13.75/0.00/20.38
Itr: 3600, loss: 1.21E+00, targ_ctg: 13.64, nnet_ctg: 13.81, Time: 2.65
Train - itrs: 100, loss: 1.61E+00, targ_updated: True
Times - up_start: 0.00, up_data: 2.35, up_end: 0.29, data_samp: 0.00, train: 0.39, save_net: 0.00, save_status: 0.00, Tot: 3.05

Getting Data - itr: 3700, update_num: 37, targ_update: 37, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.44, ->get_states: 0.06, ->pathfinding: 4.29, Tot: 4.87
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.61, nodes: 0.78, up_inst: 0.07, heur: 2.46, filt: 0.15, cost: 0.04, pushpop: 0.14, edges_next: 0.01, set_next: 0.00, Tot: 4.29
Data - %solved: 11.72, path_costs: 5.515, search_itrs: 13.263, cost-to-go (mean/min/max): 14.68/0.00/19.58
Itr: 3700, loss: 1.04E+00, targ_ctg: 14.82, nnet_ctg: 14.81, Time: 2.65
Train - itrs: 100, loss: 5.99E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.35, up_end: 0.28, data_samp: 0.00, train: 0.41, save_net: 0.00, save_status: 0.00, Tot: 3.06

Getting Data - itr: 3800, update_num: 38, targ_update: 38, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, update_perf: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, put: 0.01, gc: 0.54, ->get_states: 0.05, ->pathfinding: 4.23, Tot: 4.91
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.57, nodes: 0.83, up_inst: 0.06, heur: 2.40, filt: 0.15, cost: 0.04, pushpop: 0.14, edges_next: 0.01, set_next: 0.00, Tot: 4.23
Data - %solved: 10.54, path_costs: 4.967, search_itrs: 8.378, cost-to-go (mean/min/max): 14.93/0.00/20.04
Itr: 3800, loss: 9.29E-01, targ_ctg: 14.92, nnet_ctg: 14.41, Time: 2.66
Train - itrs: 100, loss: 9.20E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.36, up_end: 0.29, data_samp: 0.00, train: 0.43, save_net: 0.00, save_status: 0.00, Tot: 3.09

Getting Data - itr: 3900, update_num: 39, targ_update: 39, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.08, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.51, ->get_states: 0.05, ->pathfinding: 4.25, Tot: 4.92
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.50, nodes: 0.54, up_inst: 0.17, heur: 2.42, filt: 0.15, cost: 0.04, pushpop: 0.38, edges_next: 0.01, set_next: 0.00, Tot: 4.25
Data - %solved: 10.63, path_costs: 4.950, search_itrs: 10.685, cost-to-go (mean/min/max): 15.25/0.00/20.72
Itr: 3900, loss: 1.32E+00, targ_ctg: 15.88, nnet_ctg: 15.06, Time: 2.66
Train - itrs: 100, loss: 7.44E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.36, up_end: 0.30, data_samp: 0.00, train: 0.44, save_net: 0.00, save_status: 0.00, Tot: 3.10

Getting Data - itr: 4000, update_num: 40, targ_update: 40, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, update_perf: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, put: 0.01, gc: 0.46, ->get_states: 0.06, ->pathfinding: 4.25, Tot: 4.85
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.47, nodes: 0.73, up_inst: 0.17, heur: 2.42, filt: 0.15, cost: 0.04, pushpop: 0.22, edges_next: 0.01, set_next: 0.00, Tot: 4.25
Data - %solved: 10.74, path_costs: 4.827, search_itrs: 9.750, cost-to-go (mean/min/max): 15.62/0.00/21.12
Itr: 4000, loss: 1.37E+00, targ_ctg: 15.26, nnet_ctg: 15.30, Time: 2.63
Train - itrs: 100, loss: 1.74E+00, targ_updated: True
Times - up_start: 0.00, up_data: 2.34, up_end: 0.28, data_samp: 0.00, train: 0.43, save_net: 0.00, save_status: 0.00, Tot: 3.06

Getting Data - itr: 4100, update_num: 41, targ_update: 41, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.47, ->get_states: 0.05, ->pathfinding: 4.27, Tot: 4.88
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.63, nodes: 0.65, up_inst: 0.20, heur: 2.41, filt: 0.15, cost: 0.04, pushpop: 0.14, edges_next: 0.01, set_next: 0.00, Tot: 4.27
Data - %solved: 9.99, path_costs: 4.133, search_itrs: 6.513, cost-to-go (mean/min/max): 16.48/0.00/21.44
Itr: 4100, loss: 1.41E+00, targ_ctg: 17.17, nnet_ctg: 16.30, Time: 2.64
Train - itrs: 100, loss: 9.53E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.35, up_end: 0.28, data_samp: 0.00, train: 0.44, save_net: 0.00, save_status: 0.00, Tot: 3.08

Getting Data - itr: 4200, update_num: 42, targ_update: 42, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.47, ->get_states: 0.05, ->pathfinding: 4.24, Tot: 4.84
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.62, nodes: 0.73, up_inst: 0.06, heur: 2.40, filt: 0.15, cost: 0.04, pushpop: 0.18, edges_next: 0.01, set_next: 0.00, Tot: 4.24
Data - %solved: 9.96, path_costs: 5.019, search_itrs: 8.084, cost-to-go (mean/min/max): 15.85/0.00/21.84
Itr: 4200, loss: 8.29E-01, targ_ctg: 16.25, nnet_ctg: 15.97, Time: 2.61
Train - itrs: 100, loss: 1.75E+00, targ_updated: True
Times - up_start: 0.00, up_data: 2.32, up_end: 0.28, data_samp: 0.00, train: 0.45, save_net: 0.00, save_status: 0.00, Tot: 3.06

Getting Data - itr: 4300, update_num: 43, targ_update: 43, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.47, ->get_states: 0.06, ->pathfinding: 4.27, Tot: 4.88
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.44, nodes: 0.70, up_inst: 0.24, heur: 2.43, filt: 0.15, cost: 0.04, pushpop: 0.22, edges_next: 0.01, set_next: 0.00, Tot: 4.27
Data - %solved: 10.83, path_costs: 4.281, search_itrs: 6.113, cost-to-go (mean/min/max): 16.55/0.00/22.68
Itr: 4300, loss: 1.41E+00, targ_ctg: 16.53, nnet_ctg: 15.72, Time: 2.64
Train - itrs: 100, loss: 1.37E+00, targ_updated: True
Times - up_start: 0.00, up_data: 2.35, up_end: 0.28, data_samp: 0.00, train: 0.44, save_net: 0.00, save_status: 0.00, Tot: 3.08

Getting Data - itr: 4400, update_num: 44, targ_update: 44, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.47, ->get_states: 0.05, ->pathfinding: 4.27, Tot: 4.87
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.63, nodes: 0.59, up_inst: 0.20, heur: 2.42, filt: 0.15, cost: 0.04, pushpop: 0.20, edges_next: 0.01, set_next: 0.00, Tot: 4.27
Data - %solved: 10.00, path_costs: 4.297, search_itrs: 7.099, cost-to-go (mean/min/max): 16.42/0.00/22.40
Itr: 4400, loss: 8.60E-01, targ_ctg: 16.12, nnet_ctg: 15.57, Time: 2.64
Train - itrs: 100, loss: 9.03E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.35, up_end: 0.28, data_samp: 0.00, train: 0.46, save_net: 0.00, save_status: 0.00, Tot: 3.10

Getting Data - itr: 4500, update_num: 45, targ_update: 45, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, update_perf: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, put: 0.01, gc: 0.47, ->get_states: 0.06, ->pathfinding: 4.29, Tot: 4.90
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.59, nodes: 0.58, up_inst: 0.06, heur: 2.46, filt: 0.15, cost: 0.04, pushpop: 0.36, edges_next: 0.01, set_next: 0.00, Tot: 4.29
Data - %solved: 10.67, path_costs: 4.323, search_itrs: 7.113, cost-to-go (mean/min/max): 16.91/0.00/22.98
Itr: 4500, loss: 8.80E-01, targ_ctg: 17.31, nnet_ctg: 17.19, Time: 2.64
Train - itrs: 100, loss: 1.09E+00, targ_updated: True
Times - up_start: 0.00, up_data: 2.36, up_end: 0.28, data_samp: 0.00, train: 0.45, save_net: 0.00, save_status: 0.00, Tot: 3.09

Getting Data - itr: 4600, update_num: 46, targ_update: 46, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.47, ->get_states: 0.05, ->pathfinding: 4.26, Tot: 4.86
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.55, nodes: 0.58, up_inst: 0.31, heur: 2.43, filt: 0.14, cost: 0.04, pushpop: 0.16, edges_next: 0.01, set_next: 0.00, Tot: 4.26
Data - %solved: 11.18, path_costs: 4.488, search_itrs: 8.602, cost-to-go (mean/min/max): 16.25/0.00/23.10
Itr: 4600, loss: 1.14E+00, targ_ctg: 16.03, nnet_ctg: 16.17, Time: 2.63
Train - itrs: 100, loss: 8.69E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.34, up_end: 0.29, data_samp: 0.00, train: 0.42, save_net: 0.00, save_status: 0.00, Tot: 3.06

Getting Data - itr: 4700, update_num: 47, targ_update: 47, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.48, ->get_states: 0.05, ->pathfinding: 4.27, Tot: 4.88
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.53, nodes: 0.63, up_inst: 0.20, heur: 2.44, filt: 0.15, cost: 0.04, pushpop: 0.24, edges_next: 0.01, set_next: 0.00, Tot: 4.27
Data - %solved: 10.41, path_costs: 5.042, search_itrs: 7.838, cost-to-go (mean/min/max): 16.71/0.00/23.24
Itr: 4700, loss: 1.42E+00, targ_ctg: 16.33, nnet_ctg: 16.51, Time: 2.67
Train - itrs: 100, loss: 6.95E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.35, up_end: 0.31, data_samp: 0.00, train: 0.44, save_net: 0.00, save_status: 0.00, Tot: 3.10

Getting Data - itr: 4800, update_num: 48, targ_update: 48, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.47, ->get_states: 0.06, ->pathfinding: 4.25, Tot: 4.86
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.06, Tot: 0.06
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.60, nodes: 0.65, up_inst: 0.11, heur: 2.41, filt: 0.15, cost: 0.04, pushpop: 0.24, edges_next: 0.01, set_next: 0.00, Tot: 4.25
Data - %solved: 10.69, path_costs: 4.518, search_itrs: 8.729, cost-to-go (mean/min/max): 16.46/0.00/23.46
Itr: 4800, loss: 1.26E+00, targ_ctg: 16.80, nnet_ctg: 16.41, Time: 2.63
Train - itrs: 100, loss: 9.97E-01, targ_updated: True
Times - up_start: 0.00, up_data: 2.34, up_end: 0.29, data_samp: 0.00, train: 0.44, save_net: 0.00, save_status: 0.00, Tot: 3.07

Getting Data - itr: 4900, update_num: 49, targ_update: 49, num_gen: 20,000
Times - steps_gen: 0.00, inst_info: 0.00, inst_add: 0.00, backup: 0.06, get_tr_data: 0.00, to_np: 0.01, update_perf: 0.00, put: 0.01, gc: 0.48, ->get_states: 0.05, ->pathfinding: 4.26, Tot: 4.87
	(get_states): sample_goalstate_goal_pairs: 0.00, random_walk: 0.05, Tot: 0.05
	(pathfinding): root: 0.00, pop: 0.01, is_solved: 0.02, goal: 0.00, expand: 0.59, nodes: 0.52, up_inst: 0.17, heur: 2.43, filt: 0.15, cost: 0.04, pushpop: 0.31, edges_next: 0.01, set_next: 0.00, Tot: 4.26
Data - %solved: 9.43, path_costs: 4.357, search_itrs: 7.204, cost-to-go (mean/min/max): 16.17/0.00/23.49
Itr: 4900, loss: 1.71E+00, targ_ctg: 15.97, nnet_ctg: 16.15, Time: 2.64
Train - itrs: 100, loss: 1.94E+00, targ_updated: True
Times - up_start: 0.00, up_data: 2.34, up_end: 0.29, data_samp: 0.00, train: 0.44, save_net: 0.00, save_status: 0.00, Tot: 3.08
Done

Tip

An output file is saved in output.txt in the training directory.

Monitoring Training

An interactive visualization of training can be obtained during or after training with: deepxube train_summary --dir tutorial/cube3/models/.

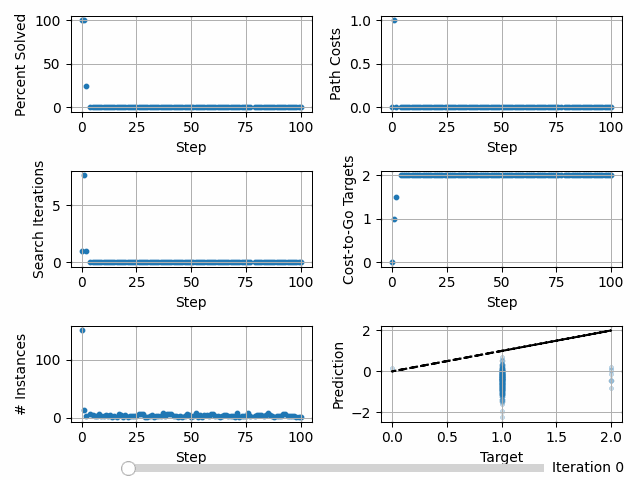

This shows the percentage solves, path costs of solutions, search iterations of solved instances, cost-to-go targets, and number of instances created as a function of the number of steps used to generate problem instances. It also shows the neural network prediction as a function of the target cost-to-go. The slider at the bottom can be used to step through training iteration. This plot is updated once every target network update.

Train summary

Note

The number of problem instances initially generated is the number of update steps times the batch size divided by the number of search iterations. Each instance \(i\) is generated with \(K_i\) steps. If instance \(i\) is solved, then a new problem instance is generated with \(K_i\) steps. Therefore, it is usually the case that there are more problem instances with fewer number of steps.

Tip

A .gif of the train summary can be saved by adding --o <file_name>.gif
