Creating a Custom Heuristic Function Optimizer and Loss

We will create a heuristic function that is optimized via stochastic gradient descent with momentum and that has an asymmetric loss that penalizes overestimation more than underestimation.

In the directory in which you run deepxube, create a heuristics/resnet_fc_tut.py file. DeepXube automatically looks in the heuristics/ folder to see what is registered. This file will be explained part-by-part.

from typing import List, Type, Tuple, Optional
import torch
from torch import nn, Tensor
import torch.optim as optim
from torch.optim import Optimizer

from deepxube.base.factory import DelimParser
from deepxube.base.nnet_input import FlatIn
from deepxube.base.heuristic import HeurNNet
from deepxube.nnet.pytorch_models import FullyConnectedModel, ResnetModel, OneHot

from deepxube.factories.heuristic_factory import heuristic_factory


# start registration
@heuristic_factory.register_class("resnet_fc_asym")
class ResnetFCHeur(HeurNNet[FlatIn]):
    @staticmethod
    def nnet_input_type() -> Type[FlatIn]:
        return FlatIn

    def __init__(self, nnet_input: FlatIn, out_dim: int, q_fix: bool, res_dim: int = 1000, num_blocks: int = 4, batch_norm: bool = False,
                 lr: float = 0.001, momentum: float = 0.5, over_w: float = 1.0):
        super().__init__(nnet_input, out_dim, q_fix)
        self.lr = lr
        self.momentum: float = momentum
        self.lr_curr: float = self.lr
        self.over_w: float = over_w
        # one hots
        self.one_hots: nn.ModuleList = nn.ModuleList()
        input_dim_tot: int = 0
        input_dims, one_hot_depths = self.nnet_input.get_input_info()
        for input_dim, one_hot_depth in zip(input_dims, one_hot_depths, strict=True):
            assert one_hot_depth >= 1
            self.one_hots.append(OneHot(one_hot_depth, True))
            input_dim_tot += input_dim * one_hot_depth

        # res net
        self.res_dim: int = res_dim

        def res_block_init() -> nn.Module:
            return FullyConnectedModel(res_dim, [res_dim] * 2, ["RELU", "LINEAR"], batch_norms=[batch_norm] * 2)

        self.heur = nn.Sequential(
            nn.Linear(input_dim_tot, res_dim),
            ResnetModel(res_block_init, num_blocks, "RELU"),
            nn.Linear(res_dim, self.out_dim)
        )

    # end init

    # start forward
    def _forward(self, inputs: List[Tensor]) -> Tensor:
        inputs_oh: List[Tensor] = [one_hot(input_i) for input_i, one_hot in zip(inputs, self.one_hots)]
        x: Tensor = self.heur(torch.cat(inputs_oh, dim=1))
        return x
    # end forward

    # start optim
    def get_optimizer(self) -> Optimizer:
        return optim.SGD(self.parameters(), lr=self.lr, momentum=self.momentum)

    def update_optimizer(self, optimizer: Optimizer, train_itr: int) -> None:
        self.lr_curr: float = self.lr / ((train_itr // 100) + 1)
        for param_group in optimizer.param_groups:
            param_group['lr'] = self.lr_curr
    # end optim

    # start loss
    def get_loss_and_info(self, fwd_tr_tensors: List[Tensor], get_info: bool) -> Tuple[Tensor, Optional[str]]:
        ctgs_nnet: Tensor = fwd_tr_tensors[0]
        ctgs_targ: Tensor = fwd_tr_tensors[1]

        err = ctgs_nnet - ctgs_targ
        sq_err = err ** 2
        sq_err_w = (self.over_w * sq_err * (err > 0.0)) + (sq_err * (err <= 0.0))
        loss = sq_err_w.mean()

        info: Optional[str] = None
        if get_info:
            info = f"targ_ctg: {ctgs_targ.mean().item():.2f}, nnet_ctg: {ctgs_nnet.mean().item():.2f}, lr: {self.lr_curr:.2E}"

        return loss, info
    # end loss

    # start repr
    def __repr__(self) -> str:
        repr_str: str = super().__repr__()
        repr_str = f"{repr_str}\nOver est weight: {self.over_w}"

        return repr_str
    # end repr


# start parser
@heuristic_factory.register_parser("resnet_fc_asym")
class ResnetFCParser(DelimParser):
    def __init__(self) -> None:
        super().__init__()
        self.add_argument("H", "res_dim", int, "dimensionality of hidden layers in residual blocks")
        self.add_argument("B", "num_blocks", int, "number of residual blocks")
        self.add_argument("bn", "batch_norm", None, "Batch normalization")
        self.add_argument("O", "over_w", float, "weight for overestimation")

    @property
    def delim(self) -> str:
        return "_"
# end parser

Tip

For heuristics that are specific to a domain, it is best to define and register them in the domain file, itself. However, for heuristics that can be re-used across domains, it is best to define and register them in a separate file in the heuristics/ folder.

Tip

Since the heuristic is registered, we should be able to see “resnet_fc_asym” with deepxube heuristic_info after it is put in your heuristics/ folder. More specific information can be obtained about the heuristic with deepxube heuristic_info --name resnet_fc_asym

Registration, Initialization, and Forward

The heuristic function takes one-dimensional data, applies the specified one-hot transformation to it, and feeds this data to a fully-connected residual neural network.

@heuristic_factory.register_class("resnet_fc_asym")
class ResnetFCHeur(HeurNNet[FlatIn]):
    @staticmethod
    def nnet_input_type() -> Type[FlatIn]:
        return FlatIn

    def __init__(self, nnet_input: FlatIn, out_dim: int, q_fix: bool, res_dim: int = 1000, num_blocks: int = 4, batch_norm: bool = False,
                 lr: float = 0.001, momentum: float = 0.5, over_w: float = 1.0):
        super().__init__(nnet_input, out_dim, q_fix)
        self.lr = lr
        self.momentum: float = momentum
        self.lr_curr: float = self.lr
        self.over_w: float = over_w
        # one hots
        self.one_hots: nn.ModuleList = nn.ModuleList()
        input_dim_tot: int = 0
        input_dims, one_hot_depths = self.nnet_input.get_input_info()
        for input_dim, one_hot_depth in zip(input_dims, one_hot_depths, strict=True):
            assert one_hot_depth >= 1
            self.one_hots.append(OneHot(one_hot_depth, True))
            input_dim_tot += input_dim * one_hot_depth

        # res net
        self.res_dim: int = res_dim

        def res_block_init() -> nn.Module:
            return FullyConnectedModel(res_dim, [res_dim] * 2, ["RELU", "LINEAR"], batch_norms=[batch_norm] * 2)

        self.heur = nn.Sequential(
            nn.Linear(input_dim_tot, res_dim),
            ResnetModel(res_block_init, num_blocks, "RELU"),
            nn.Linear(res_dim, self.out_dim)
        )

    # end init

    # start forward
    def _forward(self, inputs: List[Tensor]) -> Tensor:
        inputs_oh: List[Tensor] = [one_hot(input_i) for input_i, one_hot in zip(inputs, self.one_hots)]
        x: Tensor = self.heur(torch.cat(inputs_oh, dim=1))
        return x

Important

DeepXube expects the first three arguments, nnet_input: FlatIn, out_dim: int, q_fix: bool to have these exact names so the neural network can be properly initialized.

Custom Optimizer

Instead of using the default Adam optimizer, we implement stochastic gradient descent with momentum. Instead of using the default exponential learning rate decay, we implement a step decay. This is done by overriding deepxube.base.heuristic.DeepXubeNNet.get_optimizer and deepxube.base.heuristic.DeepXubeNNet.update_optimizer.

    def get_optimizer(self) -> Optimizer:
        return optim.SGD(self.parameters(), lr=self.lr, momentum=self.momentum)

    def update_optimizer(self, optimizer: Optimizer, train_itr: int) -> None:
        self.lr_curr: float = self.lr / ((train_itr // 100) + 1)
        for param_group in optimizer.param_groups:
            param_group['lr'] = self.lr_curr

Custom Loss

By overriding deepxube.base.heuristic.HeurNNet.get_loss_and_info, an asymmetric loss can be implemented. Custom information that periodically gets printed to the screen can also be

    def get_loss_and_info(self, fwd_tr_tensors: List[Tensor], get_info: bool) -> Tuple[Tensor, Optional[str]]:
        ctgs_nnet: Tensor = fwd_tr_tensors[0]
        ctgs_targ: Tensor = fwd_tr_tensors[1]

        err = ctgs_nnet - ctgs_targ
        sq_err = err ** 2
        sq_err_w = (self.over_w * sq_err * (err > 0.0)) + (sq_err * (err <= 0.0))
        loss = sq_err_w.mean()

        info: Optional[str] = None
        if get_info:
            info = f"targ_ctg: {ctgs_targ.mean().item():.2f}, nnet_ctg: {ctgs_nnet.mean().item():.2f}, lr: {self.lr_curr:.2E}"

        return loss, info

Representation

Since the overestimation amount is a parameter given to the class constructor, we can modify the __repr__ function to also print this information.

    def __repr__(self) -> str:
        repr_str: str = super().__repr__()
        repr_str = f"{repr_str}\nOver est weight: {self.over_w}"

        return repr_str

Tip

The neural network representation is printed before training to make it easier to determine what neural network architecture was used across different runs.

Parser

The parser parses the overestimation penalty along with the dimensionality of the residual network, number of blocks, and whether or not to perform batch normalization.

@heuristic_factory.register_parser("resnet_fc_asym")
class ResnetFCParser(DelimParser):
    def __init__(self) -> None:
        super().__init__()
        self.add_argument("H", "res_dim", int, "dimensionality of hidden layers in residual blocks")
        self.add_argument("B", "num_blocks", int, "number of residual blocks")
        self.add_argument("bn", "batch_norm", None, "Batch normalization")
        self.add_argument("O", "over_w", float, "weight for overestimation")

    @property
    def delim(self) -> str:
        return "_"

Training

deepxube train --domain cube3 --heur resnet_fc_asym.200H_2B_bn_20o --heur_type V --pathfind graph_v --step_max 100 --up_itrs 100 --search_itrs 50 --backup -1 --procs 2 --batch_size 200 --max_itrs 5000 --dir tutorial/heur_asym_loss/models/ --display 50

--display 50: to display the neural network training information implemented in get_loss_and_info every 50 iterations.

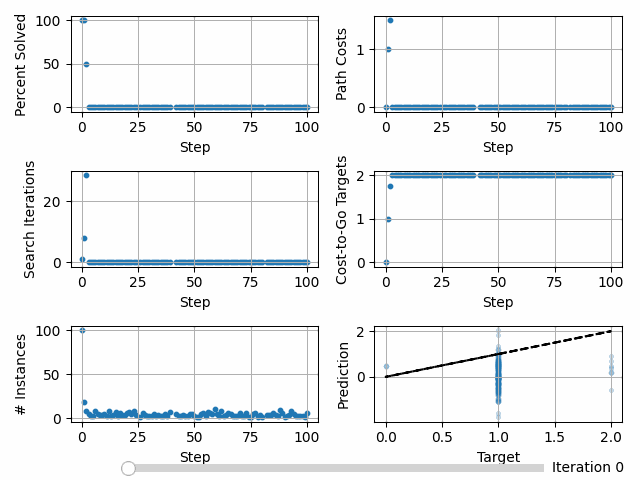

Using deepxube train_summary --dir tutorial/heur_asym_loss/models/ we can see that the neural network output is below the target the majority of the time.
